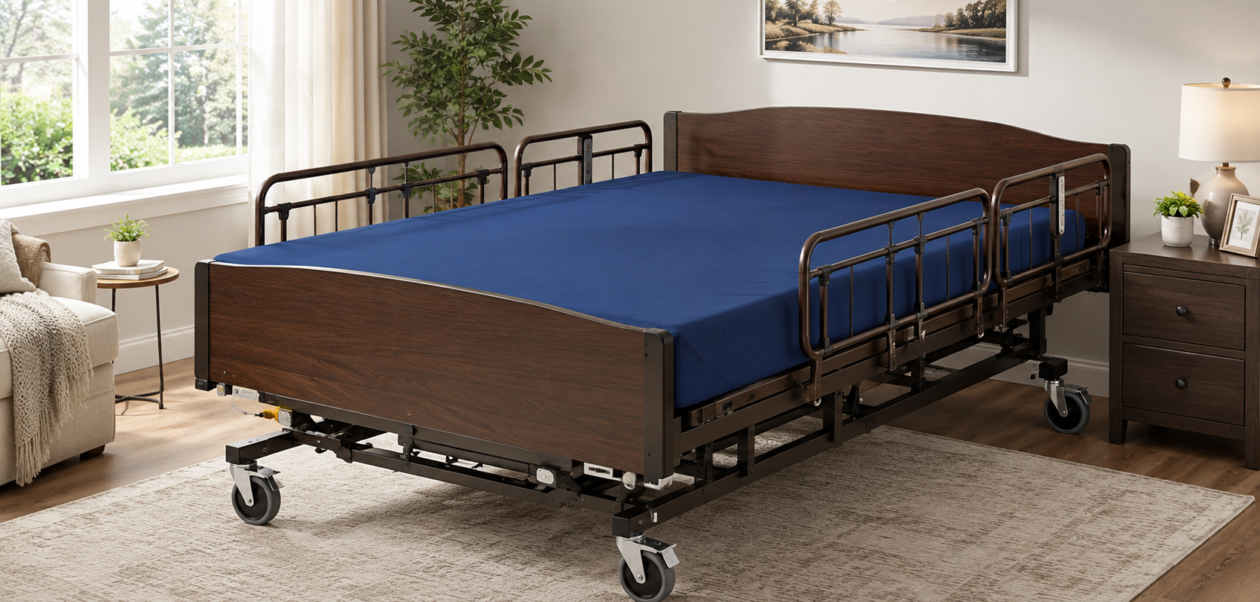

Gendron Bariatric Home Hospital Bed GS3648: Complete Guide
The Gendron Bariatric Home Hospital Bed GS3648 is a fully electric home-care bed. It has a wide 48 x 84-inch sleeping deck and a maximum weight capacity of 650 lb.
The bed also includes a split frame, electric controls, side rails and locking casters. Therefore, it can provide a practical option for some home-care settings.
This guide explains the GS3648 specifications, features, size, safety points and buying considerations in simple terms.
What Is the Gendron GS3648?
The Gendron GS3648 is part of the 3648 Series from Gendron and Graham-Field.
It is designed as a bariatric home-care bed. In addition, the manufacturer lists it as a fully electric model.
Users can control the bed with a pendant. The standard control supports three main positioning functions.
The bed also has a two-piece split frame. As a result, moving it through a home may be easier than moving a large one-piece frame.
According to the manufacturer, the GS3648 also includes a solid pan-style deck and special locking casters.
Manufacturer source: Graham-Field 3648 Series Homecare Bariatric Bed
Gendron GS3648 Specifications
| Specification | Details |
|---|---|
| Model | GS3648 |
| Bed deck width | 48 inches (121.92 cm) |
| Bed deck length | 84 inches (213.36 cm) |
| Minimum deck height | 15 inches (38.10 cm) |
| Maximum deck height | 32 inches (81.28 cm) |
| Maximum weight capacity | 650 lb (294.84 kg), evenly distributed |
| Operation | Fully electric |
| Controls | Pendant with 3-function positioning |
| Frame | Two-piece split frame |
| Sleep deck | Solid pan-style deck |
| Side rails | Head-end side rails included |
| Casters | Total-Lock and Steer-Lock system |
Source: Gendron 3648 Series Product Sheet
Key Features of the Gendron GS3648
1. 48-Inch-Wide Bed Deck
The GS3648 has a 48-inch-wide sleeping deck.
Its deck is also 84 inches long. Therefore, it offers more width than many standard home hospital beds.
However, buyers should measure the room before ordering.
Also check doors, hallways and the final bed location. This can help avoid delivery problems.
2. 650-lb Weight Capacity
The manufacturer lists a maximum capacity of 650 lb.
This equals about 294.84 kg.
However, the weight must be evenly distributed across the bed.
Users should also follow the manufacturer’s instructions when choosing a mattress or accessories.
3. Fully Electric Controls
The GS3648 is a fully electric hospital-style bed.
It uses a pendant control. Therefore, users or caregivers can adjust the bed without using manual cranks.
The manufacturer lists a three-function positioning system.
This can make everyday positioning easier in a home-care environment.
4. Split-Frame Design
One useful feature is the two-piece frame.
A split frame may make transport easier. For example, it can help when a home has narrow hallways or smaller doors.
Gendron also highlights this design as a feature for easier delivery and transport.
5. Solid Pan-Style Deck
The GS3648 uses a solid pan-style sleeping deck.
However, the bed frame alone does not determine comfort or pressure management.
The mattress must also match the bed correctly.
For this reason, buyers should confirm mattress compatibility before use.
6. Side Rails and Locking Casters
The manufacturer says the GS3648 includes head-end side rails.
It also features Total-Lock and Steer-Lock casters.
These casters help control movement when the bed is moved or placed in position.
However, users should always follow the manufacturer’s instructions for rails and wheel locks.
GS3648 vs GS3648B
Gendron lists two similar models: GS3648 and GS3648B.
Although the names look similar, the packages are different.
| Model | Main Description | What to Check |
|---|---|---|
| GS3648 | Bed package with rails and boards | Confirm mattress and included accessories |
| GS3648B | Bed-only version | Check which accessories must be purchased separately |
The GS3648 uses a 48 x 84-inch split frame and has a 650-lb capacity.
The GS3648B has similar main bed specifications. However, it is listed as the bed-only version.
Therefore, always check the exact model number before buying.
Also confirm what the seller includes in the package.
What Should You Check Before Ordering?
Before buying the Gendron Bariatric Home Hospital Bed GS3648, consider several important points.
Measure the Room
First, measure the room where the bed will stay.
Also measure doors, hallways and other narrow spaces.
This can make delivery and setup easier.
Check Mattress Compatibility
The mattress should fit the bed correctly.
In addition, check its width, length and thickness.
An incorrect mattress may create unwanted gaps around the bed frame or rails.
Consider the User’s Needs
Every person has different care needs.
For example, some users may need frequent positioning. Others may need help with transfers or mobility.
Therefore, the bed setup should match the person’s care plan.
Check the Power Supply
The GS3648 is fully electric.
So, make sure a suitable electrical outlet is available near the bed location.
Also follow all electrical instructions provided by the manufacturer.
Confirm Included Accessories
Different sellers may offer different packages.
For this reason, ask whether the package includes:
- Side rails
- Headboard and footboard
- Mattress
- Other required accessories
Ask About Service and Warranty
Medical equipment may need maintenance over time.
Therefore, ask the seller about warranty coverage, replacement parts and authorized service.
Home-Care Safety and FDA Guidance
Hospital-bed safety involves more than weight capacity.
For example, gaps between the mattress, rails and bed frame can create safety risks.
The U.S. Food and Drug Administration provides guidance about hospital-bed safety and entrapment.
The FDA also says this guidance can apply to beds used in home-care settings.
Therefore, users and caregivers should check the complete bed system regularly.
FDA reference: Hospital Beds – U.S. Food and Drug Administration
FDA entrapment guidance: FDA Frequently Asked Questions on Entrapment Issues
Important Safety Note
A side rail is not automatically suitable for every person.
Mattress size, mobility, rail design and individual care needs can affect safety.
Therefore, follow the manufacturer’s instructions.
When needed, ask a qualified healthcare professional or medical-equipment provider for guidance.
Who Might Consider the GS3648?
The GS3648 may suit some home-care setups that need a wider medical bed.
It may also be considered when electric positioning and a stronger frame are required.
In addition, caregivers may find adjustable positioning useful during everyday care.
However, this does not mean the bed is suitable for every person.
A healthcare professional or qualified medical-equipment provider can help determine which setup is appropriate.
Basic Care and Maintenance
Regular checks can help keep the bed in good condition.
Keep the area around the bed clean and clear.
In addition, inspect the wheels and locks regularly.
Look for visible damage to:
- Electrical cables
- Pendant controls
- Side rails
- Frame parts
- Casters
Do not use damaged parts.
Also, avoid making unauthorized changes to the frame or electrical system.
For maintenance and service instructions, use the official product documents.
Official source: Graham-Field Gendron Product Page
Frequently Asked Questions
What is the weight capacity of the Gendron GS3648?
The manufacturer lists a maximum capacity of 650 lb (294.84 kg) when the weight is evenly distributed.
What size is the Gendron GS3648?
The bed deck is 48 inches wide and 84 inches long.
How high can the GS3648 go?
The manufacturer lists a minimum deck height of 15 inches and a maximum height of 32 inches.
Is the Gendron GS3648 electric?
Yes. The GS3648 is a fully electric home-care bed.
It uses a pendant with three-function positioning controls.
Does the GS3648 include side rails?
The manufacturer’s product information says head-end side rails are included.
However, package contents can vary by seller. Therefore, check before ordering.
What is the difference between GS3648 and GS3648B?
The GS3648 is listed as a package that includes rails and boards.
The GS3648B is listed as the bed-only version.
Therefore, check the model number and included accessories before buying.
Final Thoughts
The Gendron Bariatric Home Hospital Bed GS3648 is a fully electric bariatric home-care bed.
Its main features include a 48 x 84-inch deck, 650-lb weight capacity, electric positioning and a split-frame design.
It also includes head-end side rails and locking casters.
However, buyers should check the room size, mattress compatibility, package contents and individual care needs before ordering.
Most importantly, follow the manufacturer’s instructions and appropriate professional guidance when setting up medical equipment at home.
